BSP Camlock Type E

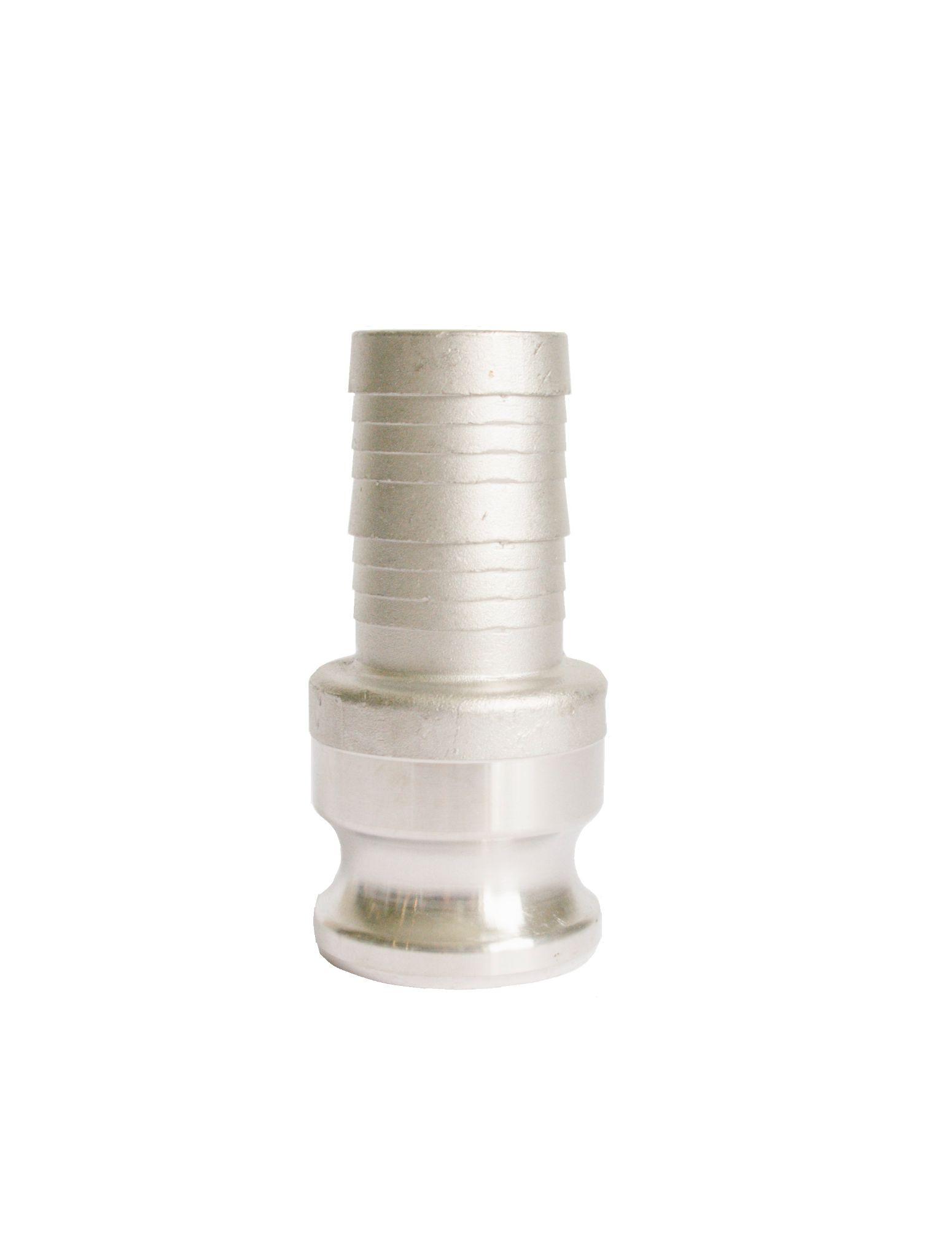

BSP Camlock Type E fittings are designed to connect a hose tail directly to a camlock adaptor, providing a fast and reliable solution for hose-based fluid transfer systems. Featuring a male camlock adaptor on one end and a hose tail on the other, Type E fittings allow hoses to be quickly connected or disconnected from matching female camlock couplers without the need for tools.

Camlock couplings use a simple cam-arm locking mechanism that creates a secure seal when engaged, while still allowing rapid release when required. This makes BSP Camlock Type E fittings ideal for applications where hoses need to be connected and removed frequently, such as wash-down systems, chemical transfer lines, water services, and general industrial hose assemblies. The quick-connect design helps minimise downtime and simplifies routine maintenance or equipment changeovers.

Manufactured from Grade 316 stainless steel, these fittings offer excellent corrosion resistance and long-term durability in harsh environments. The molybdenum content in Grade 316 significantly improves resistance to chlorides, salt spray, moisture, and many chemicals, making Type E camlocks suitable for marine environments, coastal installations, outdoor use, and aggressive wash-down areas. Stainless steel construction also provides good temperature tolerance and strength for demanding service conditions.

The hose tail is designed to suit flexible hose and should be secured using appropriate hose clamps or crimping methods to ensure a reliable seal and prevent hose pull-off under pressure. When correctly installed, the combination of a secure hose tail and camlock coupling provides a dependable, leak-resistant connection.

BSP Camlock Type E fittings are available in a range of sizes to suit different hose diameters and flow requirements. Selecting the correct size ensures proper engagement with mating camlock couplers and optimal system performance.

These fittings are widely used for transferring water, chemicals, oils, fuels, and other compatible fluids across industrial and process applications. For a corrosion-resistant, quick-connect hose solution that combines convenience, strength, and durability, Grade 316 stainless steel BSP Camlock Type E fittings are a proven industry-standard choice. Select the camlock size in inches to match your hose and connection requirements.
