BSP 3 Piece Ball Valve

BSP 3-piece stainless steel ball valves are designed to provide reliable and positive on/off flow control in a wide range of piping systems, with the added advantage of easy servicing and maintenance. Unlike one- or two-piece valves, the 3-piece design features a removable centre body that contains the ball, seats, and seals. This allows the valve to be disassembled, inspected, or serviced without removing the end connections from the pipeline, significantly reducing downtime and maintenance effort.

These valves are manufactured from Grade 316 stainless steel, offering excellent corrosion resistance and durability in demanding environments. Grade 316 stainless steel is particularly well suited to marine, coastal, chemical processing, and wash-down applications, as well as hygienic systems such as food, beverage, and pharmaceutical installations. Its resistance to chlorides and aggressive media helps ensure long service life and consistent performance.

BSP threaded connections allow straightforward installation into existing pipework, making these valves a versatile option for both new systems and upgrades. The full-bore ball valve design provides minimal flow restriction when fully open, while the quarter-turn handle allows quick and clear operation between open and closed positions. Ball valves are intended for isolation duties rather than throttling, ensuring reliable shut-off when required.

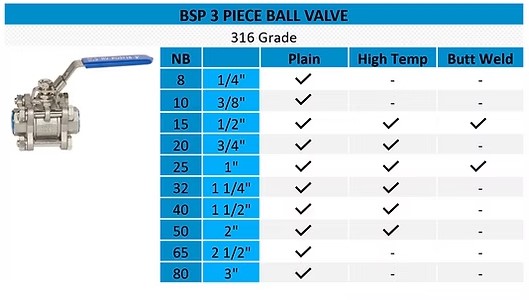

Options shown include plain (standard service), high-temperature variants for elevated operating conditions, and butt weld versions for permanent welded installations where threaded joints are not preferred. Selecting the correct valve type, size, and end connection is essential to match system requirements, pressure ratings, and operating conditions.

BSP 3-piece stainless steel ball valves are widely used in industrial pipework, marine systems, chemical plants, hygienic process lines, and general stainless steel installations. For applications requiring durability, serviceability, and corrosion resistance, these Grade 316 stainless steel valves provide a proven and industry-standard solution.
