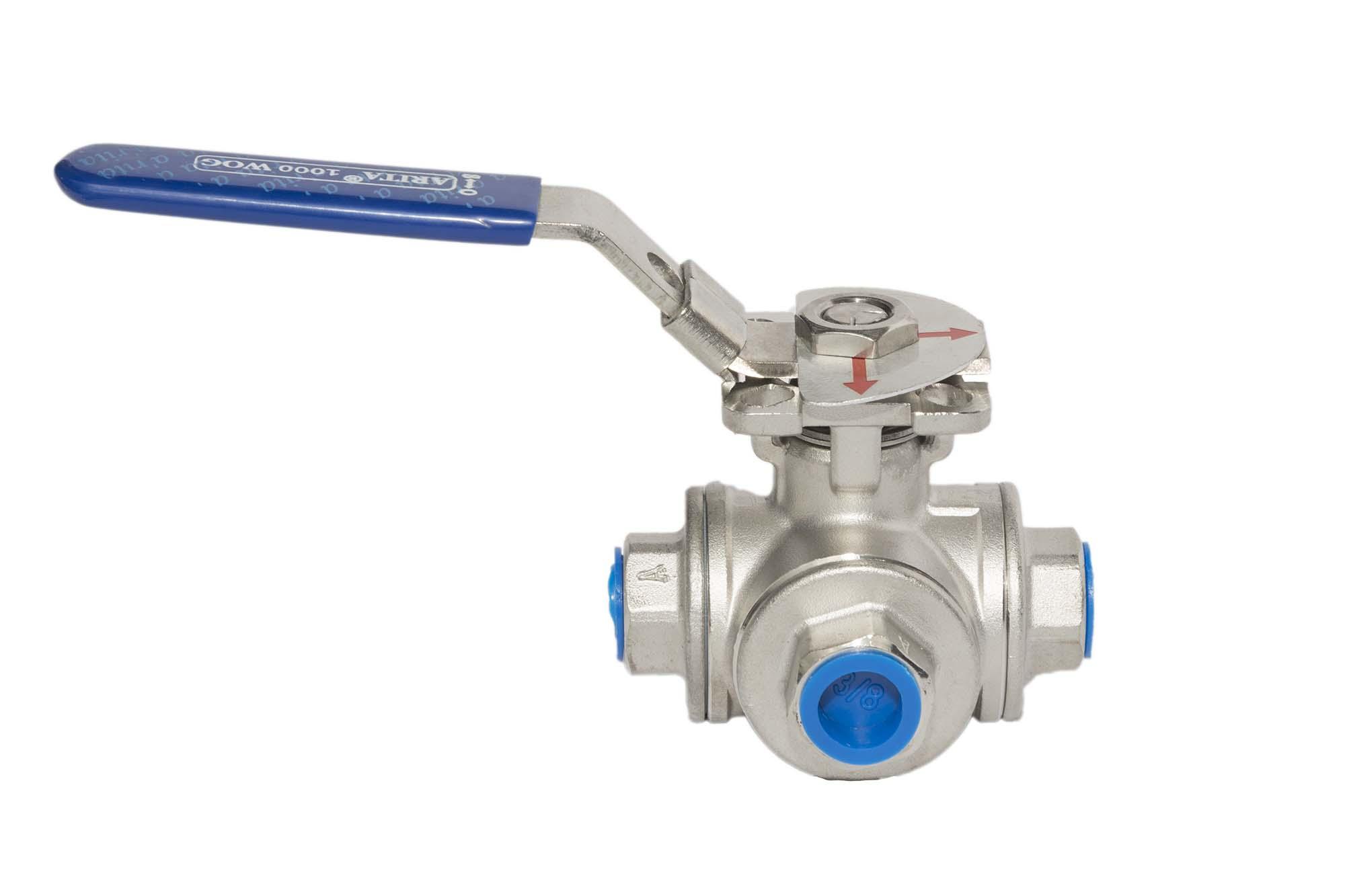

BSP 3 Way L/T Port Valve

BSP 3-way L-port and T-port stainless steel ball valves are designed to control, divert, or mix flow between three separate ports within a piping system. Unlike standard 2-way ball valves that simply provide on/off isolation, 3-way ball valves allow flow to be redirected between different outlets or combined from multiple inlets, depending on the internal port configuration. This makes them highly versatile components in systems that require controlled flow switching.

L-port and T-port designs offer different flow path options. An L-port valve typically allows flow to be directed between two ports at a time, making it ideal for diverting flow from one outlet to another. A T-port valve, on the other hand, can allow flow to be mixed or distributed between multiple ports, depending on the handle position. Understanding the required switching function is important when selecting between L-port and T-port configurations, as each serves a different operational purpose.

These BSP 3-way ball valves are manufactured from Grade 316 stainless steel, providing excellent corrosion resistance and durability. Grade 316 stainless steel is particularly suitable for marine, coastal, chemical, and wash-down environments where exposure to moisture, salt, or aggressive media is common. This makes the valves reliable for long-term use in demanding industrial and process applications.

BSP threaded connections allow for easy installation into existing threaded pipe systems. Valve size should be selected based on the nominal bore (NB) and the corresponding BSP thread size to ensure correct fit and flow compatibility. BSP 3-way stainless steel ball valves are widely used in process piping, fluid transfer systems, marine services, and industrial applications where flexible flow control is required. For dependable performance, corrosion resistance, and versatile flow management, these Grade 316 stainless steel 3-way ball valves provide a proven and industry-standard solution.
